AI-30 Fiber Fusion Splicer / Fiber Optic Splicer with with Highly Integrated Cleaver, Auto Fiber Core Alignment 0.05μm, 6s Fast Splicing, Built-in Power Meter&VFL, 5'' LCD Display, 7800mAh

Product DescriptionAI-30 is the world's fourth-generation fiber optic fusion splicer, Full Link Integration Designwhich combines an electric splitter and fusion splicer with an 8 in 1 signal fire stripper, and is a fourth-generation trunk fiber optic fusion splicer with a highly integrated link design.The 3-in-1 fiber optic fusion splicer bracket can be used for jumper fiber(pigtail), drop cable and bare fiber.In addition to that, it also provides support for SM, MM, bare fiber, pigtail, Drop cable , multi fiber cable.Product parametersMotor number：6 motorsSplicing time：6sHeating mode：15s Fiber type：Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible optical fiber.The cladding diameter：80-150μmSplicing loss：0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）Splicing mode：Automatic focusing core alignment, conventional/high precision splicingSplicing way：Automatic, semi-automatic,manuallyFiber cleaver：Equipped with electric high-precision cleaverFiber holder：Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cableBattery capacity：7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 240 coresMagnification：320x (X or Y axis single display) ，200x (x and Y axis dual display)Cutting length：Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mmDisplay：5 inch TFT color display screenPacking List:- Fusion Splicer Fiber Optic Kit- User manual

• 【Visible Core Fusion Splicer& Ultra Precision】- Fusion Splicer AI-30 is a real visible core fusion splicer, Full Link Integration Design, AI-30 has a fiber alignment accuracy of up to 0.05μm. The fusion splicer uses a powerful high-speed motor to achieve a fast fusion time of 6 seconds and a heating time of 15 seconds, and continuous fusion and heating for about 240 times.
• 【 Automatic Delayed Return Electric ONE-STEP Cleaver】-Built-in high precision delay return electric one-step fiber cleaver, automatic/manual knife face change, automatic delay return, delay time 0.2 seconds -2 seconds. Cutter LED auxiliary lighting, brightness adjusted by APP, and is equipped with a multifunctional 9-in-1 pliers, and is a fourth-generation trunk fiber optic fusion splicer with a highly integrated link design.
• 【Built in OPM&VFL Function】- Using the latest core alignment technology with auto-focus and six motors. Effectively measure connection losses, verify continuity, and help evaluate fiber link transmission quality. 3-in-1 universal fixture, suitable for single mode/multimode, multi-core optical cable/bare fiber, pigtail, jumper, leather cable.

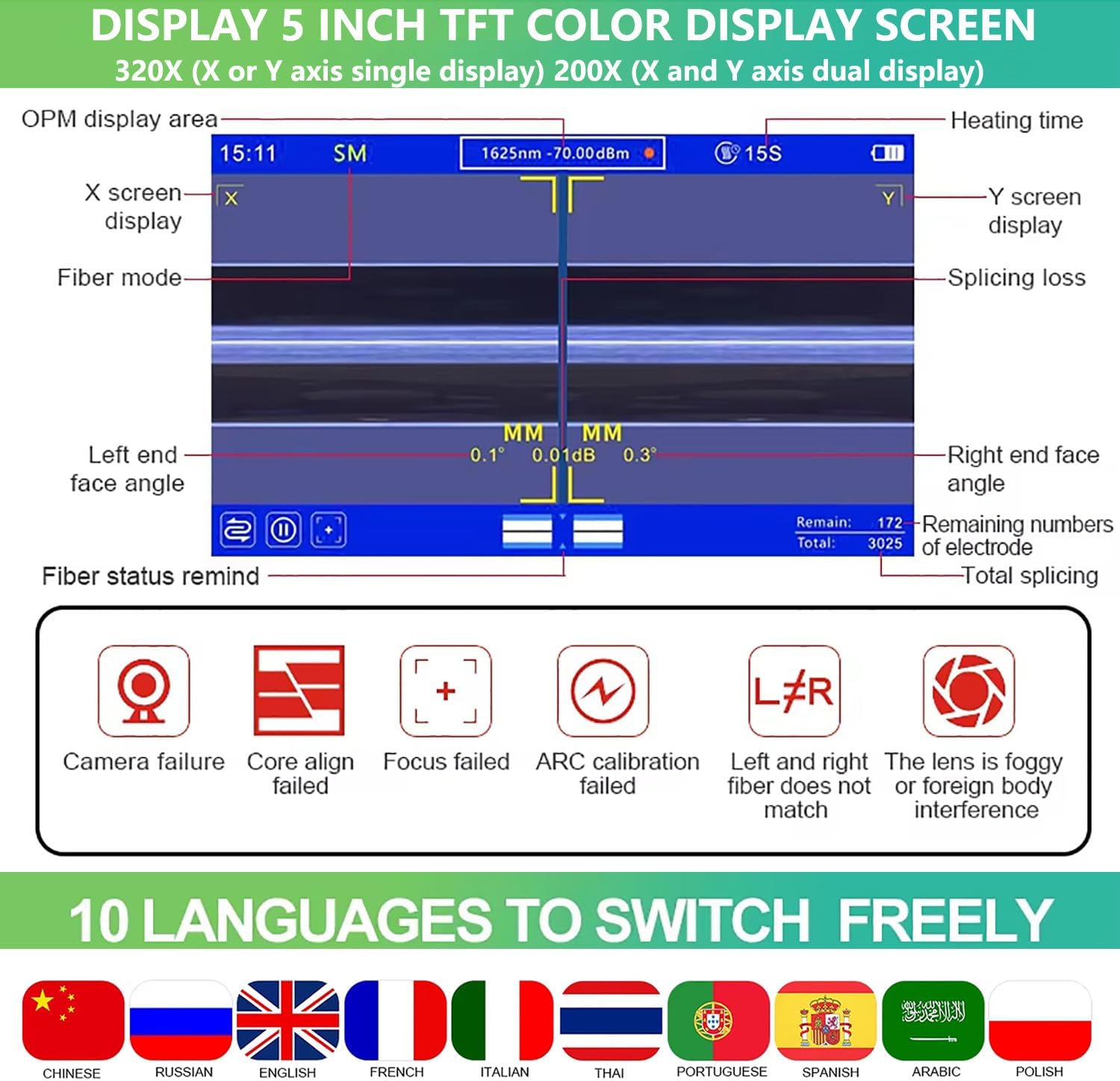

• 【Clear LCD & Long Time Standby】- With 5-inch high-resolution screen, it is up to 320 times the focus magnifications when X/Y Axis displayed separately, 200 times focused magnifications when X and Y Axis dual display. 7800 mah high-capacity lithium battery, charging time ≤ 3.5 hours.
• 【Intelligent Interaction】- This splicing heating machine can be connected to mobile app, ten different languages can be switched like English, French, Russia, Italian, Portuguese, polish, Spanish, Thai, Arabic which is convenient for customers to use. You can check the data by your mobile phone and downloaded or output at any time, also the splicing records can be stored indefinitel.
